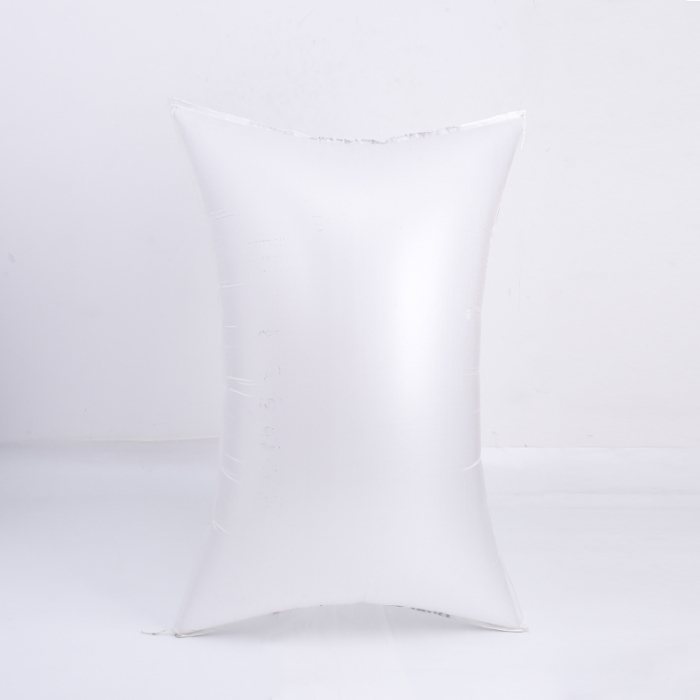

Level-1 Poly-woven Dunnage Bag

Level-1 airbags are designed for Truck, Intermodal, Railroad and Sea Containers weighing up to 44,000 lbs / 19.958 KG. They are Level 1 AAR Verified.

Dokdin Level-1 airbags are made from a durable poly-woven dunnage material.

Re-usable
Re-cyclable
Waterproof
Easy to inflate and deflate
Working pressure (Max.) = 2.9 PSI / 0.20 Bar
Burst pressure (Min) = 8 PSI / 0.55 Bar

Advantage：

Available in several different types and sizes, dependingon the products and mode of transportation.
ProAir Inflation System ensuring consistent pressureand speed.
Have a very high strength due to the unique choice ofmaterials and composition.
Custom sizes available
Made from environmentally friendly materials. Reusableand recyclable.
Meet the European regulations regarding the contentof heavy metals.
Competitive price
Logo print available

What makes Dokdin dunnage bags different than its Competition?

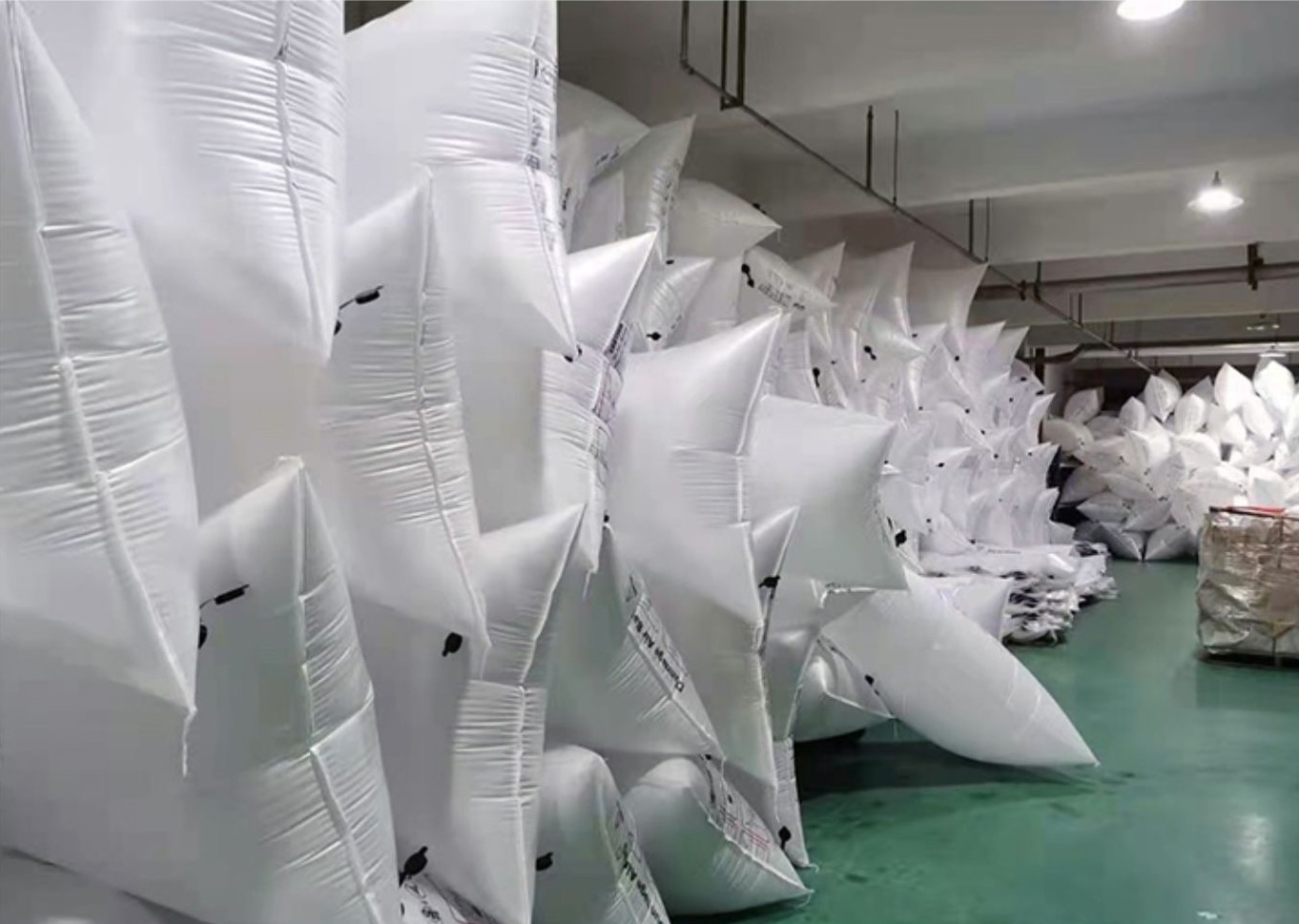

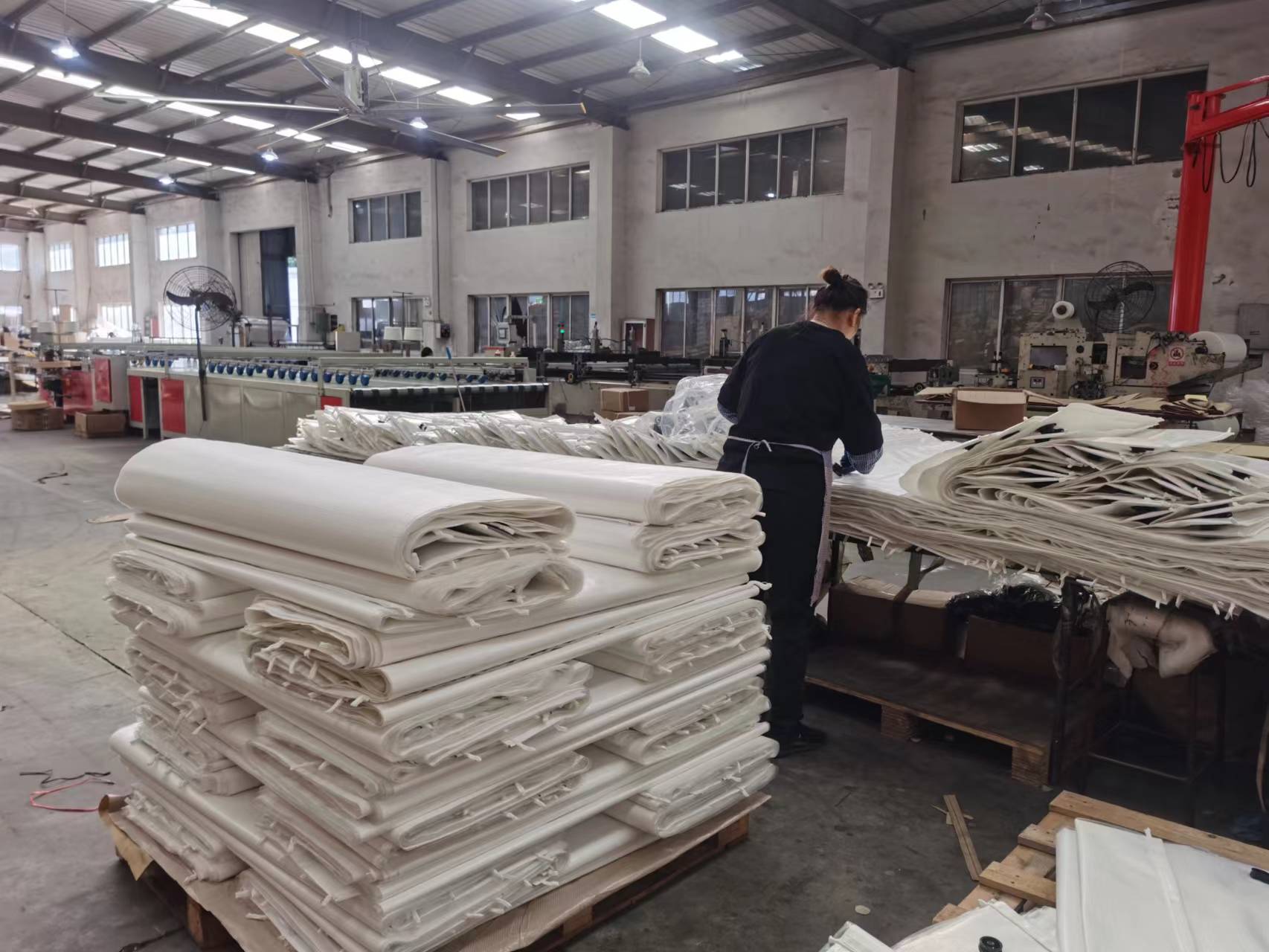

We are good manufacturers of dunnage air bags. What separates us is that we have taken advantage of our plant to provide a higher level of service and quality.

We have the ability to make bags faster, replenish stock, make custom sizes within weeks . We are the manufacturer thus we have 100% control of our products.

Our focus isn't to be the biggest manufacturer, it is to be the best servicing manufacturer with a great quality record. Our Sales Team is dedicated to find solutions for our customers whether it is to save you money OR make sure you are utilizing the right bag for the right cargo.

Application

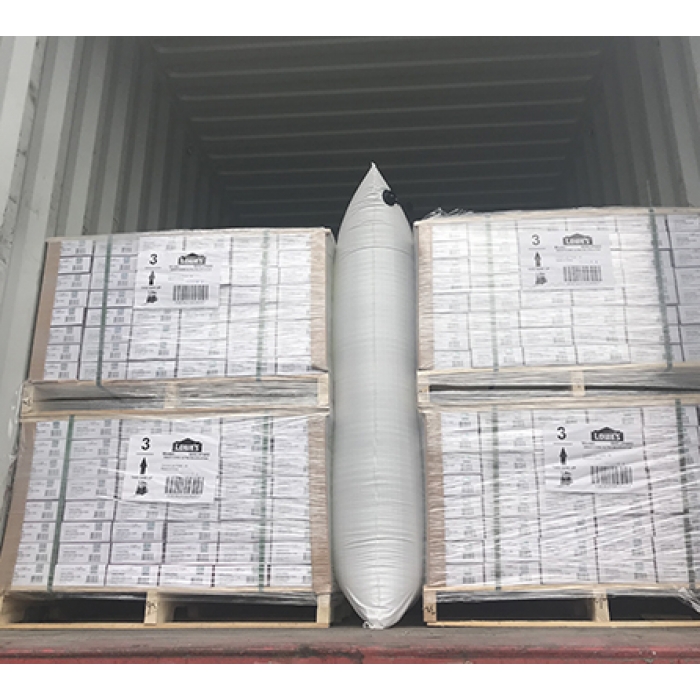

To secure cargo in transit, transported by sea, container,rail or Road. The empty airbag is placed in the gaps betweenthe cargo and inflated using compressed air. The airbag fillsup the gap and provides support and stabilizes the cargoeffectively during transport. This relative inexpensive meanseffectively prevent the goods from being damaged byimmobilize the shifting movements of the cargo duringshipping or transport.

Materials

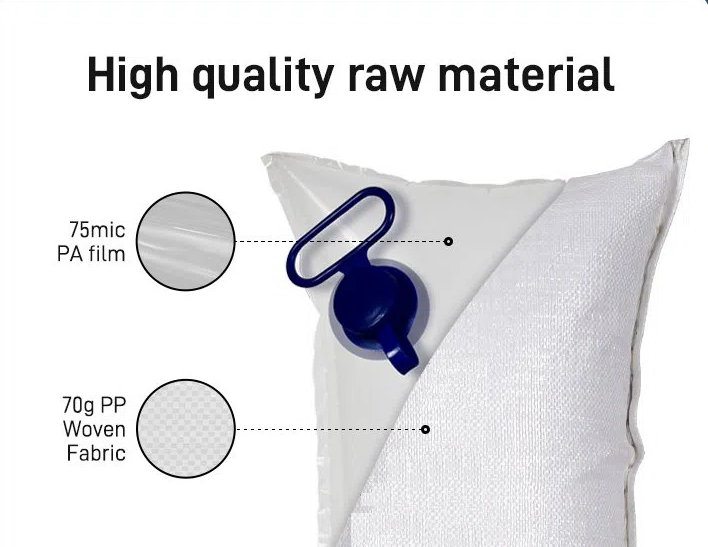

The inner bag is made of co-extrusion high qualitypolyethylene (PE) film ensuring ultimate air-tight seal.The outer bag is made of polypropylene (PP) for maximumstrength. These materials are recyclable and contain noheavy metals.

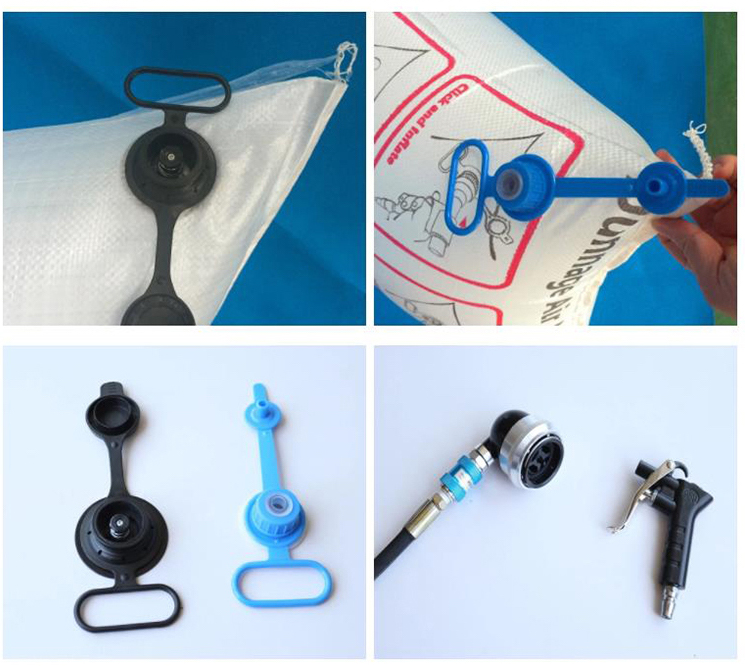

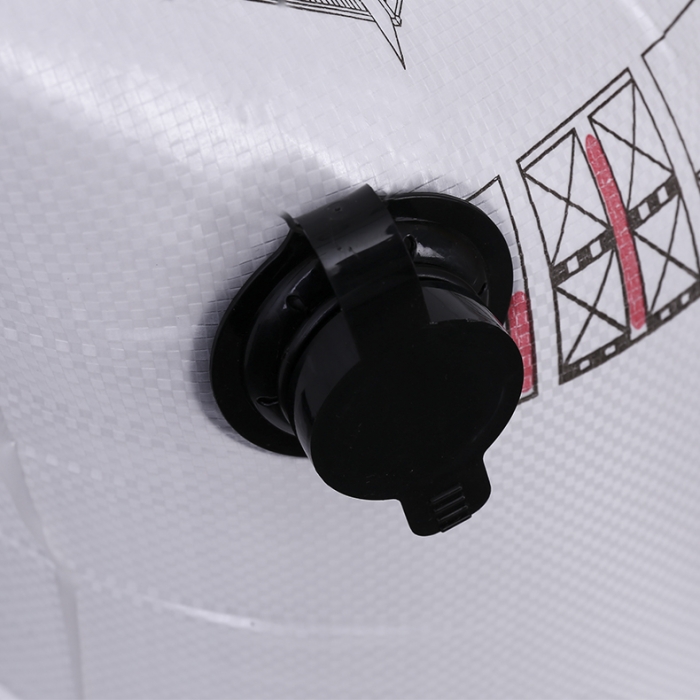

ProAir Valve

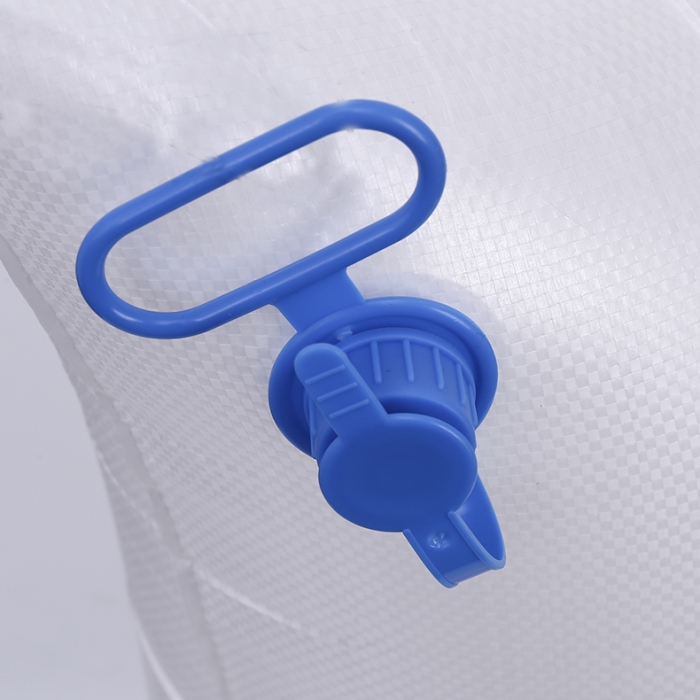

Equipped with a patented valve, which allows fast infilationand deflation. When use with ProAir inflator the time takenfor inflation and deflation can be reduced significantly besideensuring consistent bag pressure.

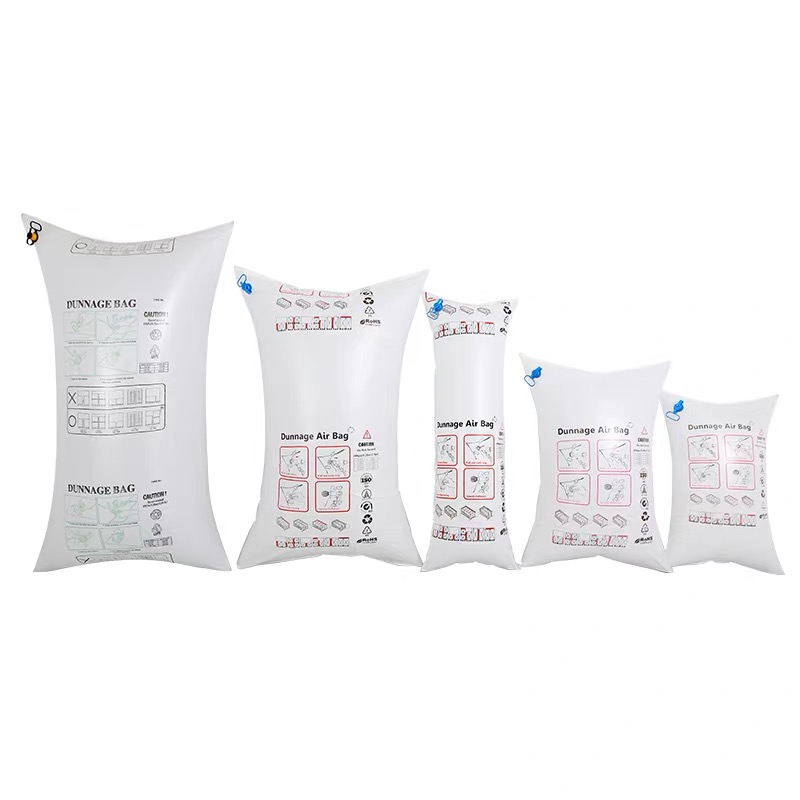

Size Selection

Bag Width	Max Gap
32"/800mm	8"/200mm
36"/900mm	9"/225mm
40"/1000mm	10"/250mm
48"/1200mm	12"/300mm

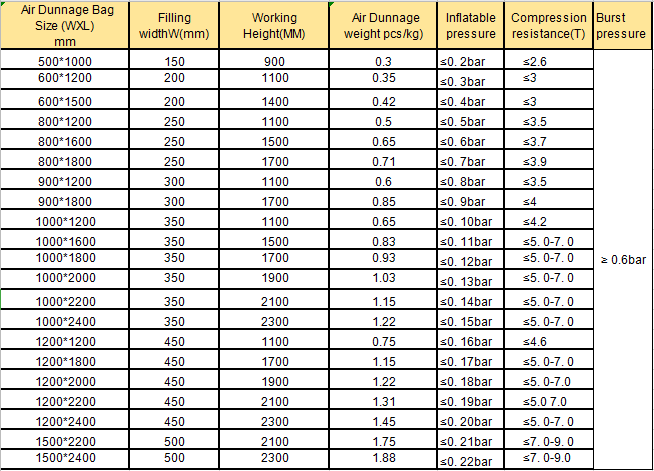

Specification

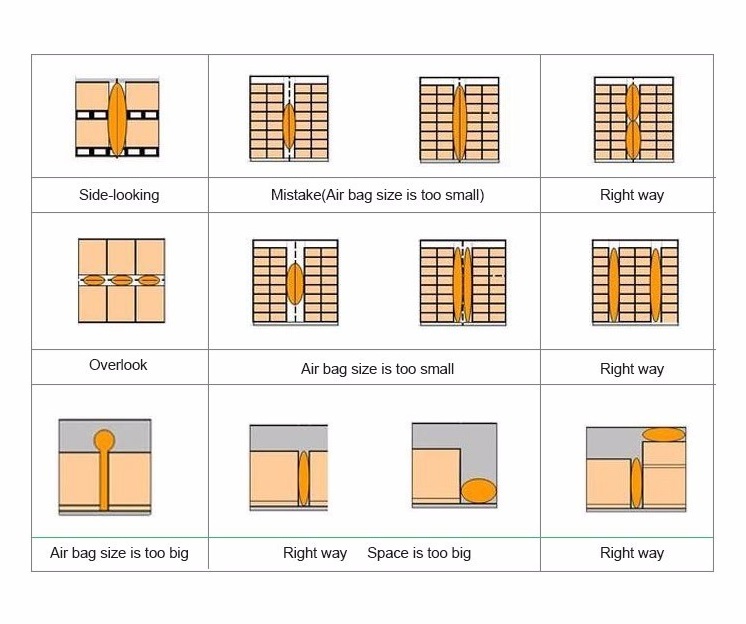

Application Guide

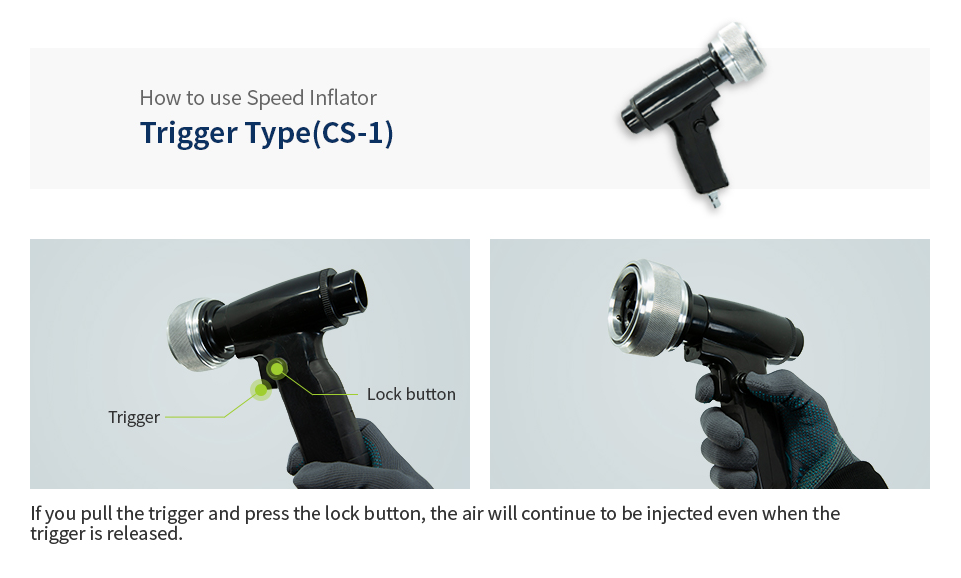

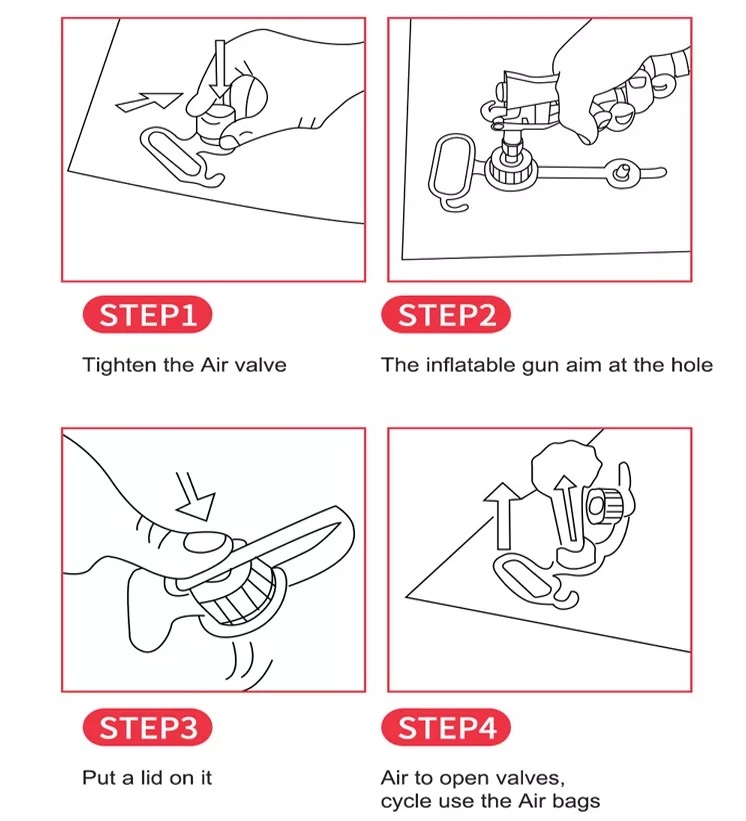

How to use

Level-1 Poly-woven Dunnage Bag
