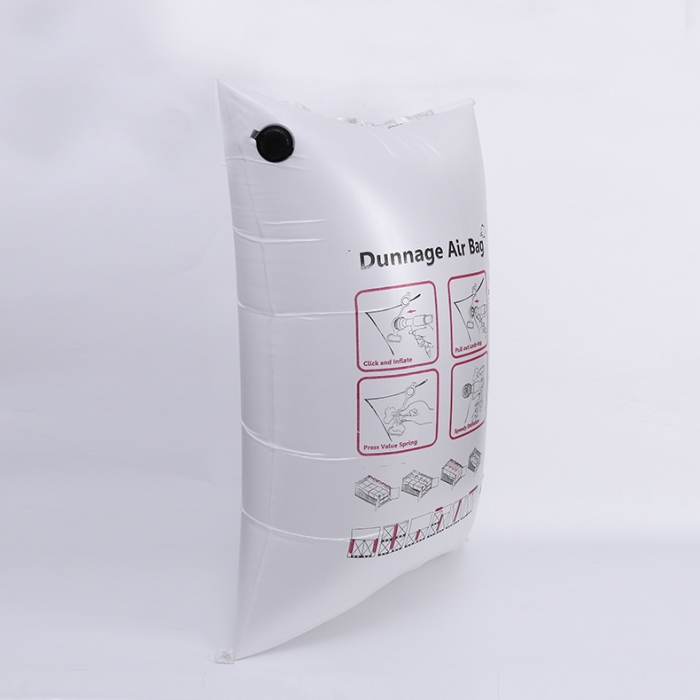

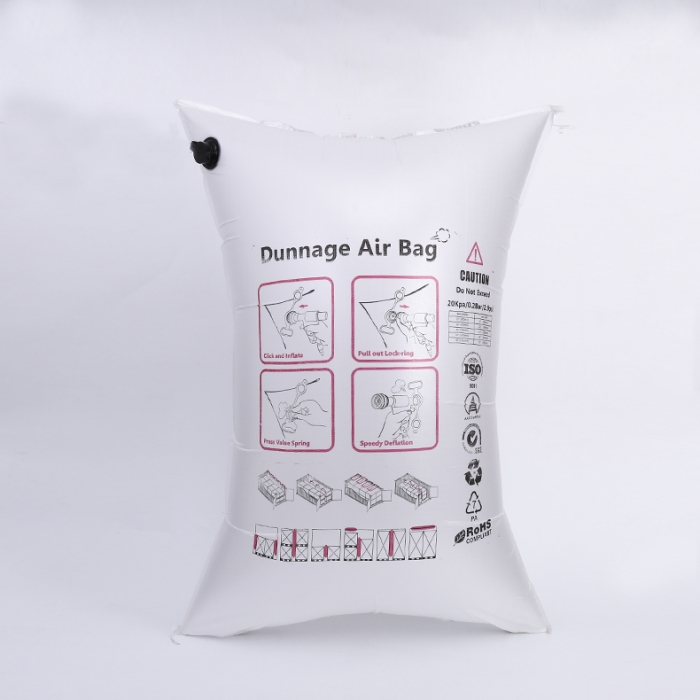

Poly Woven Dunnage Bags Level 3

Certification: AAR/ROHS/IOS 9001/RICHS
Material: Out Bag PP woven, Inner Bag Polymide(PA)
Use: Container/Truck/Train
G.W: Out Bag 70-218 g/mf, Inner Bag 75-150 g/mf
Structure: Out Bag(PP woven)+Inner Bag (7 layers co-extrusion PA film)+Air valve
Thickness: Inner Bag 7.5S-15S/75um-150um
Compressive Strength: 20Kpa-80Kpa/5T-40T
Inner Bag Heat Seal Strength:≥35N/15MM
Inner Bag Longitudinal Tensile Strength:≥26Mpa
Inner Bag Lateral Tensile Force: ≥26Mpa
Outer Bag Meridional Tensile Force: z628N/CM
Outer Bag Weft Tensile Strength:z568N/CM

Application

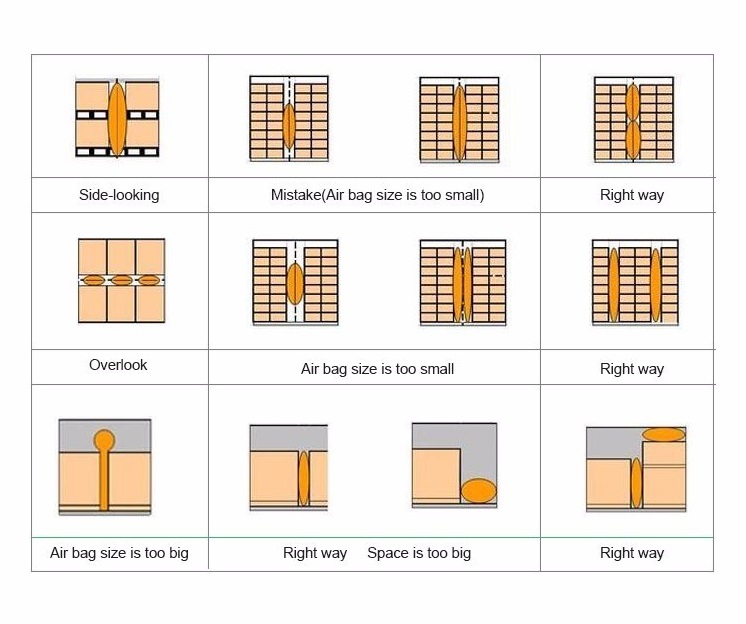

To secure cargo in transit, transported by sea, container, rail or road. The empty airbag is placed in the gaps between the cargo and inflated using compressed air. The airbag fills up the gap and provides support and stabilizes the cargo effectively during transport. This relative inexpensive means effectively prevent the goods from being damaged by immobilize the shifting movements of the cargo during shipping or transport. Use inflatable dunnage air bags.

Materials

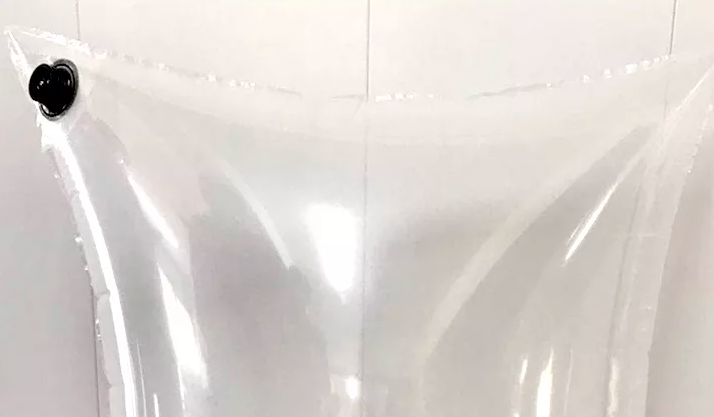

The inner bag is made of co-extrusion high quality polyethylene (PE) film ensuring ultimate air-tight seal. The outer bag is made of polypropylene (PP) for maximum strength. These materials are recyclable andcontain no heavy metals.

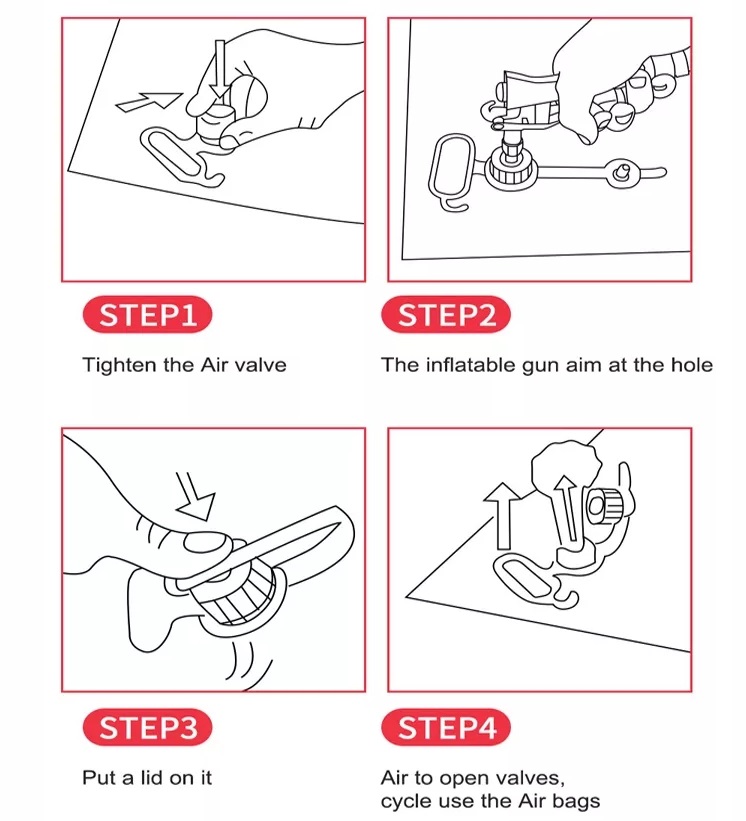

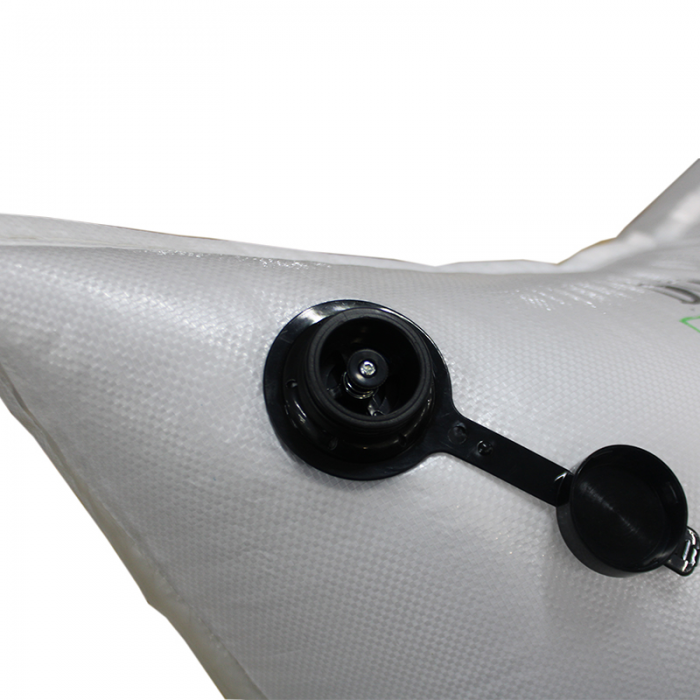

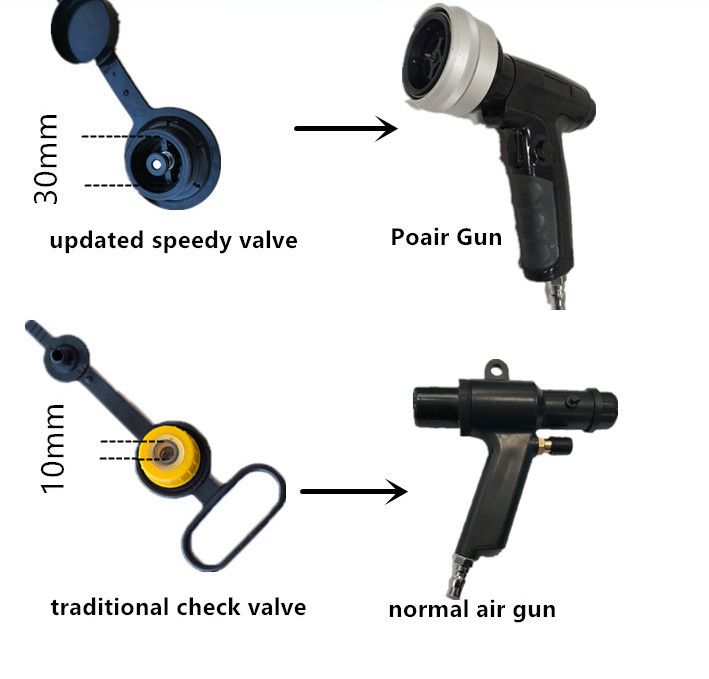

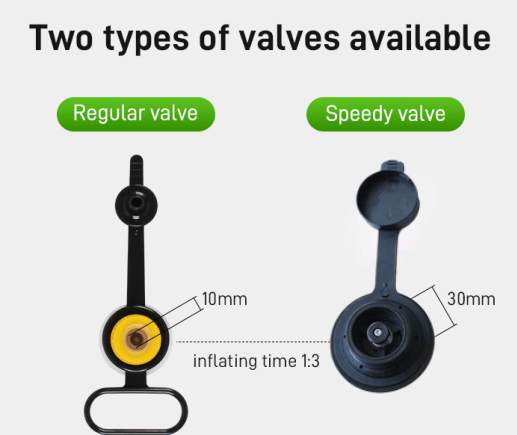

ProAir Valve

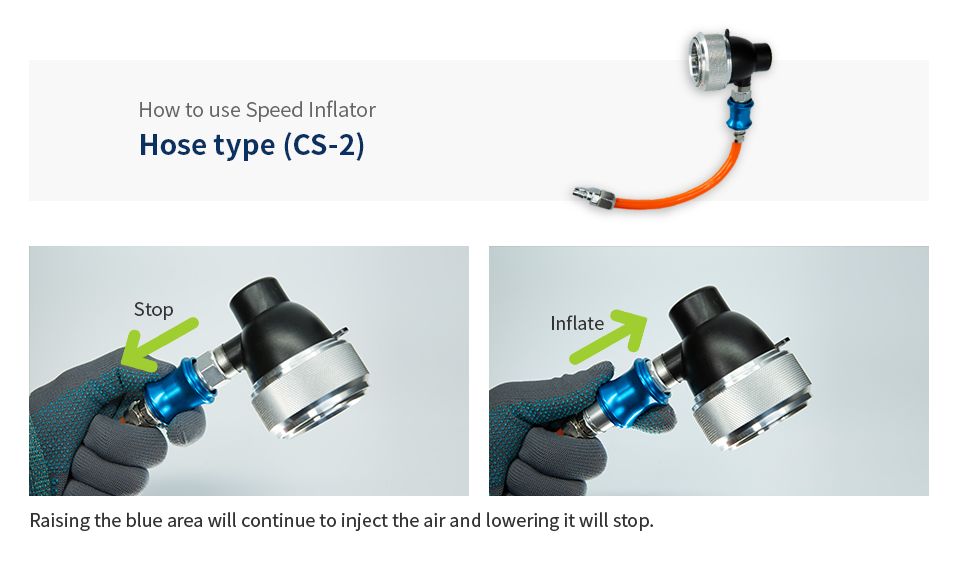

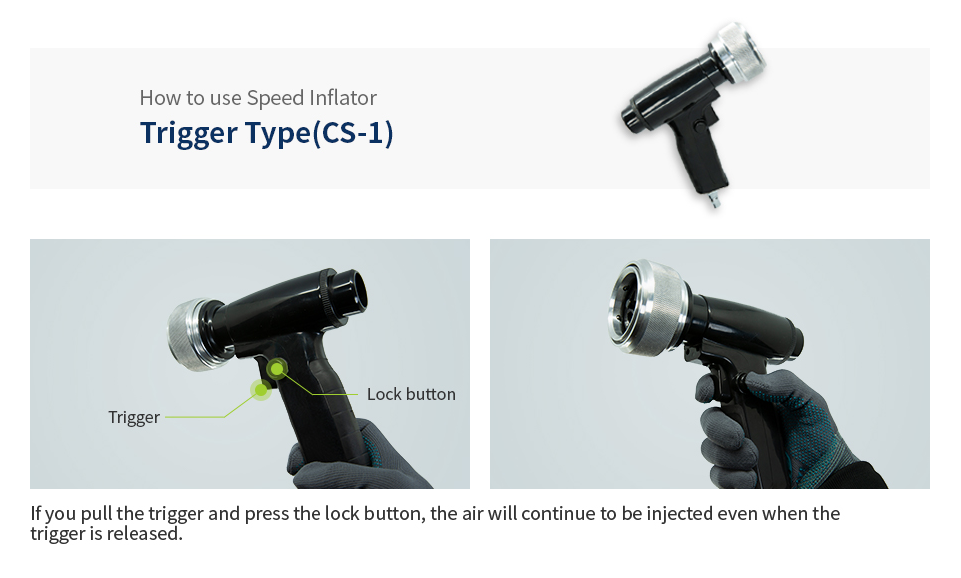

Our inflatable dunnage air bags Equipped with a patented valve, which allows fast inflation and deflation. When use with ProAir inflator the time for inflation and deflationcan be reduced significantly beside ensuring consistent bag pressure.

Features & Benefits:

• Available in several different types and sizes, depending on the products and mode of transportation.
• Have a very high strength due to complete unique choice of materials and composition.
• Made from environmentally friendly materials. Reusable and recyclable.
• Meet the European regulations regarding the content of heavy metals.

Advantage
